04640201 GST 402 KN-250
Код товара: 85966
Ціна за запитом

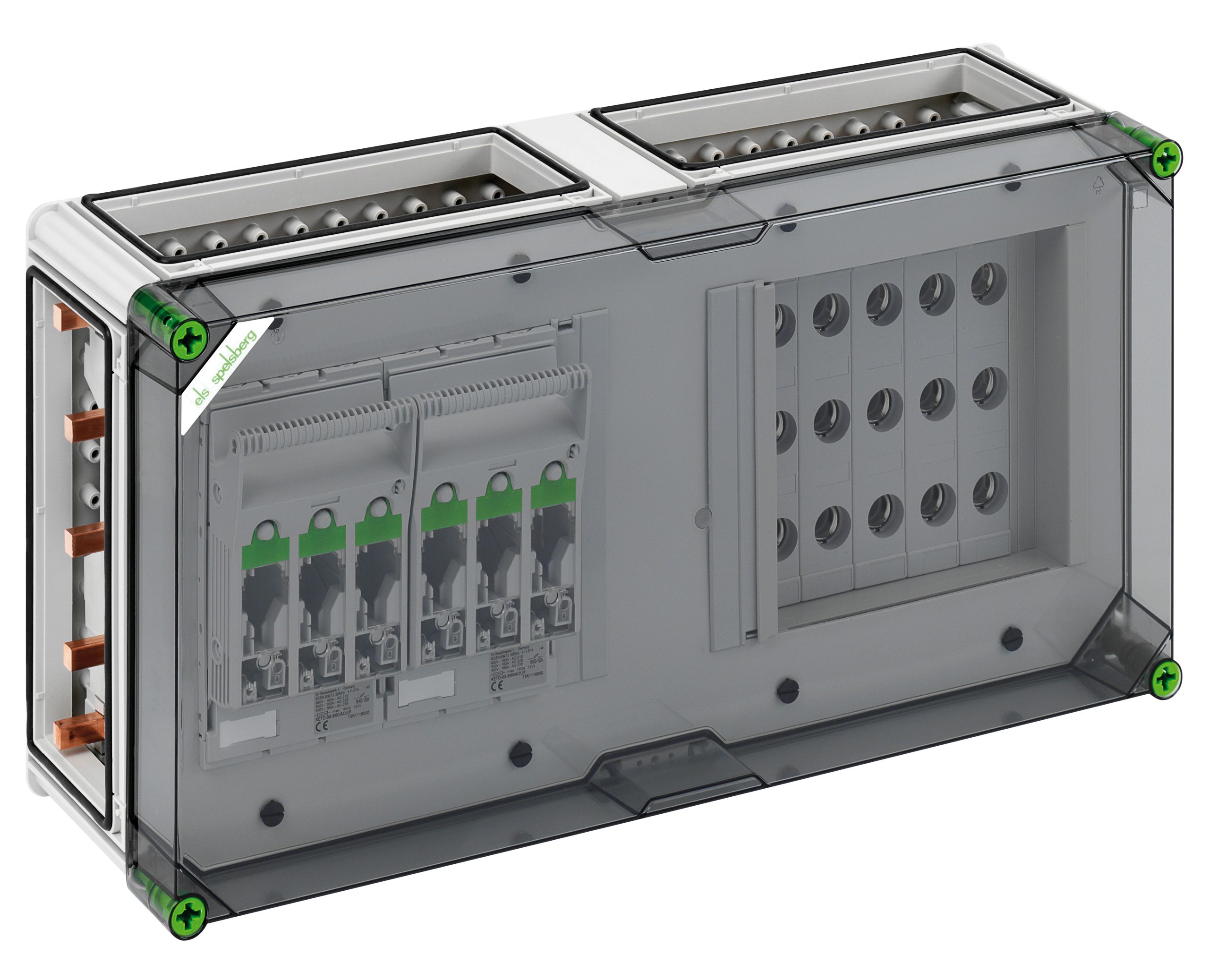

Combined fuse enclosure, Type of protection IP65, Impact strength IK08, Protection class II, Rated voltage 400V AC, Halogen free
| Виробник |
|---|
busbar enclosure-Industrial Quality -, equipped with 2 x NH 00 fuse switch disconnector enclosure, Shell connection 1.5-50mm², Universal output, 5 x 3-pole D02 bus-mounting fuse base, E 18 thread, Screw connection 1.5-25mm², 5-pole busbar, with 5 busbar terminals for direct connection of a cable to the busbar system, additional N and PE terminal for each switch and fuse base, 4 x enclosure connectors (GGV)
, busbar system 250 A, with transparent cover
Dimensions: 640 x 320 x 179mm
International product number (GTIN): 4013902052240
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 04640201
Manufacturer type description: GST 402 KN-250
Ключові слова: Sicherungsgehäuse, Fuse enclosure, NH-Lasttrenngehäuse, NH fuse enclosure, NH-Lasttrennergehäuse, NH – load disconnector housing, Schaltanlagen, switchboards, ISO-Verteiler, iso distributor
Special product status:
Classification system: ETIM-9.0
Group reference: EC000249
