04603586 GST 4035-630
Код товара: 85922
Ціна за запитом

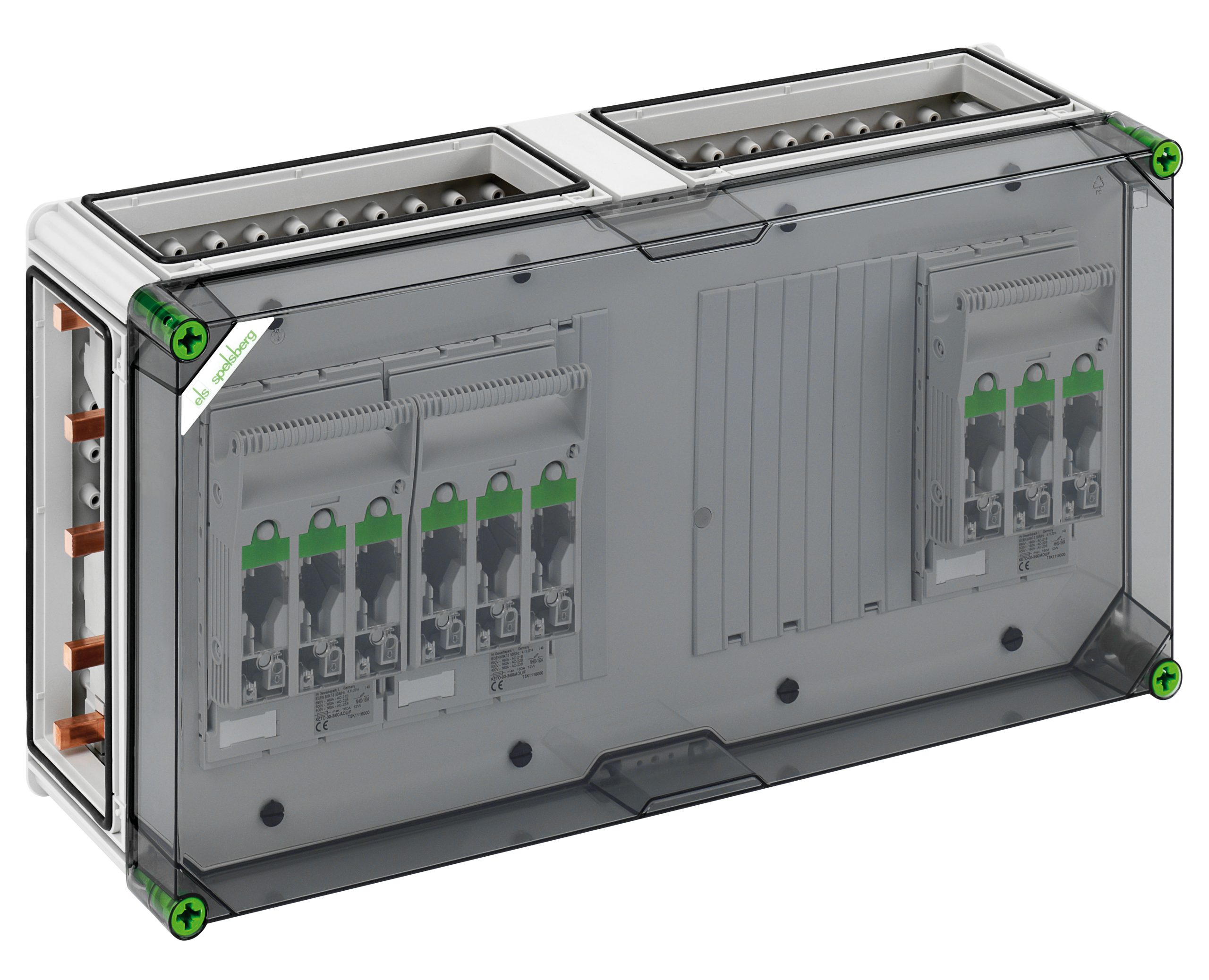

NH fuse enclosure, Type of protection IP65, Impact strength IK08, Protection class II, Rated voltage 690V AC, Halogen free
| Виробник |
|---|
busbar enclosure-Industrial Quality -, equipped with 3 x NH 00-fuse-switch-disconnector, clip terminal clamp 1.5-50mm², Universal output, 5-pole busbar, with 5 busbar terminals for direct connection of a cable to the busbar system, additional N and PE terminal for each switch, 4 x enclosure connectors (GGV)
, busbar system 630 A, with transparent cover
Dimensions: 640 x 320 x 179mm
International product number (GTIN): 4013902873296
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 04603586
Manufacturer type description: GST 4035-630
Ключові слова: NH-Lasttrenngehäuse, NH fuse enclosure, NH-Lasttrennergehäuse, NH – load disconnector housing, Schaltanlagen, switchboards, ISO-Verteiler, iso distributor, ISO-Schaltanlagen, iso switchboards
Special product status:
Classification system: ETIM-9.0
Group reference: EC000249
Посилання
Страница продукта
Link to FAQ
Link to Application example
Link to Download
Link to Technical data sheet
Link to Sales brochure
Link to REACH information
Link to Product page
Dimensioned drawing
Link to Product note
Link to Siemens support portal
Circuit diagram
