04621586 GST 2315-630
Код товара: 85943
Ціна за запитом
NH fuse enclosure, Type of protection IP65, Impact strength IK08, Protection class II, Rated voltage 690V AC, Halogen free
| Виробник |
|---|

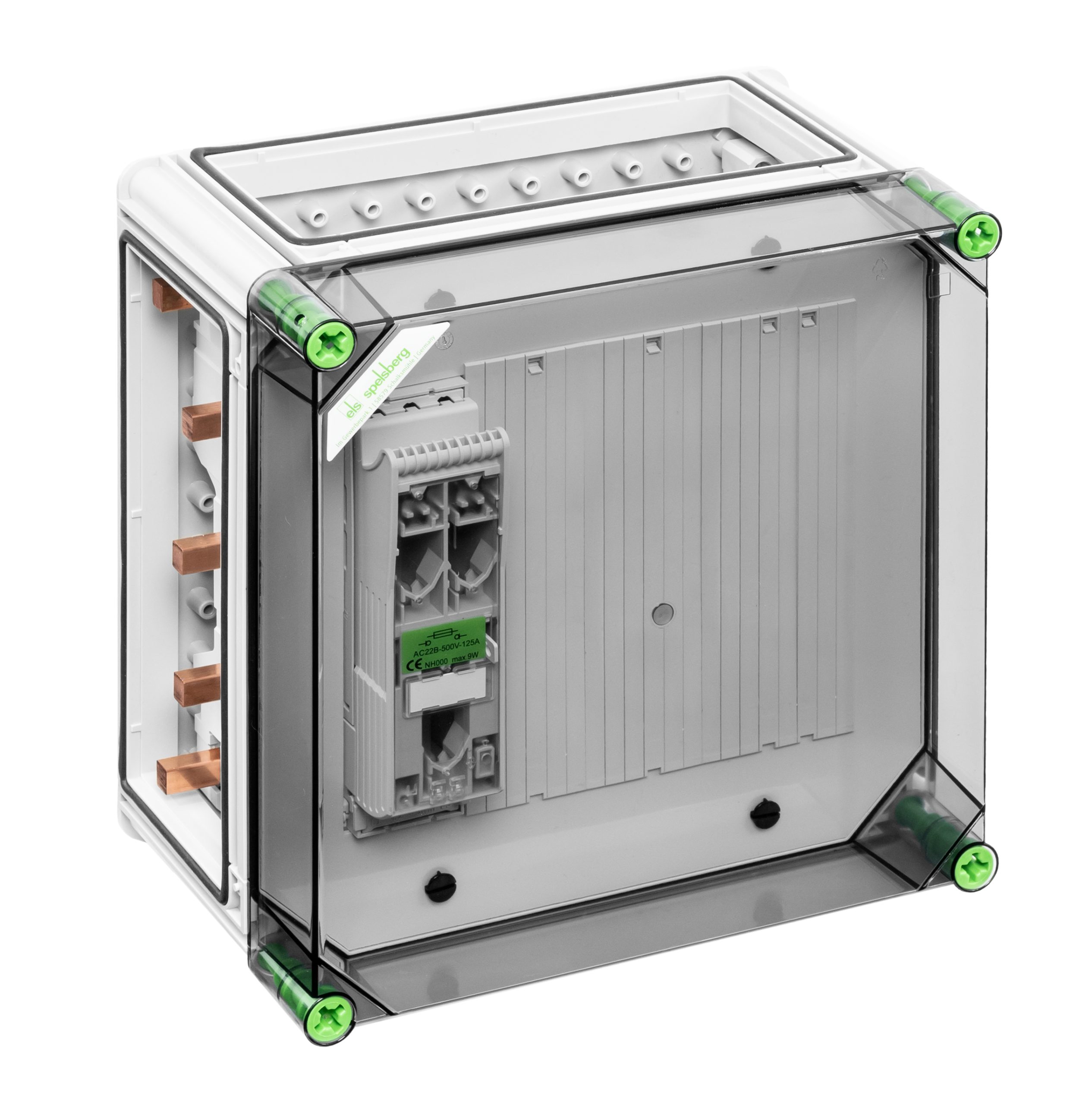

busbar enclosure-Industrial Quality -, equipped with 1 x NH 000 fuse switch disconnector, Elevator clamp 1.5-50mm², bottom side output, 5-pole busbar, with 5 busbar terminals for direct connection of a cable to the busbar system, additional N and PE terminal for each switch, 3 x enclosure connectors (GGV), busbar system 630 A, with transparent cover
Dimensions: 320 x 320 x 179mm
International product number (GTIN): 4013902689170
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 04621586
Manufacturer type description: GST 2315-630
Ключові слова: Sicherungsgehäuse, Fuse enclosure, NH-Lasttrenngehäuse, NH fuse enclosure, NH-Lasttrennergehäuse, NH – load disconnector housing, Sicherungsverteiler, fuse distributor, Schaltanlagen, switchboards
Special product status:
Classification system: ETIM-9.0
Group reference: EC000249
