41042101 Abox Pro 100 AB-10²
Код товара: 88959
Ціна за запитом
Junction box, Type of protection IP66/IP67/IP69, max. 10², IK09, Protection class II, Ui 690V AC, Ui 690V DC, DLG, DNV, VDE, Halogen free
| Виробник |
|---|

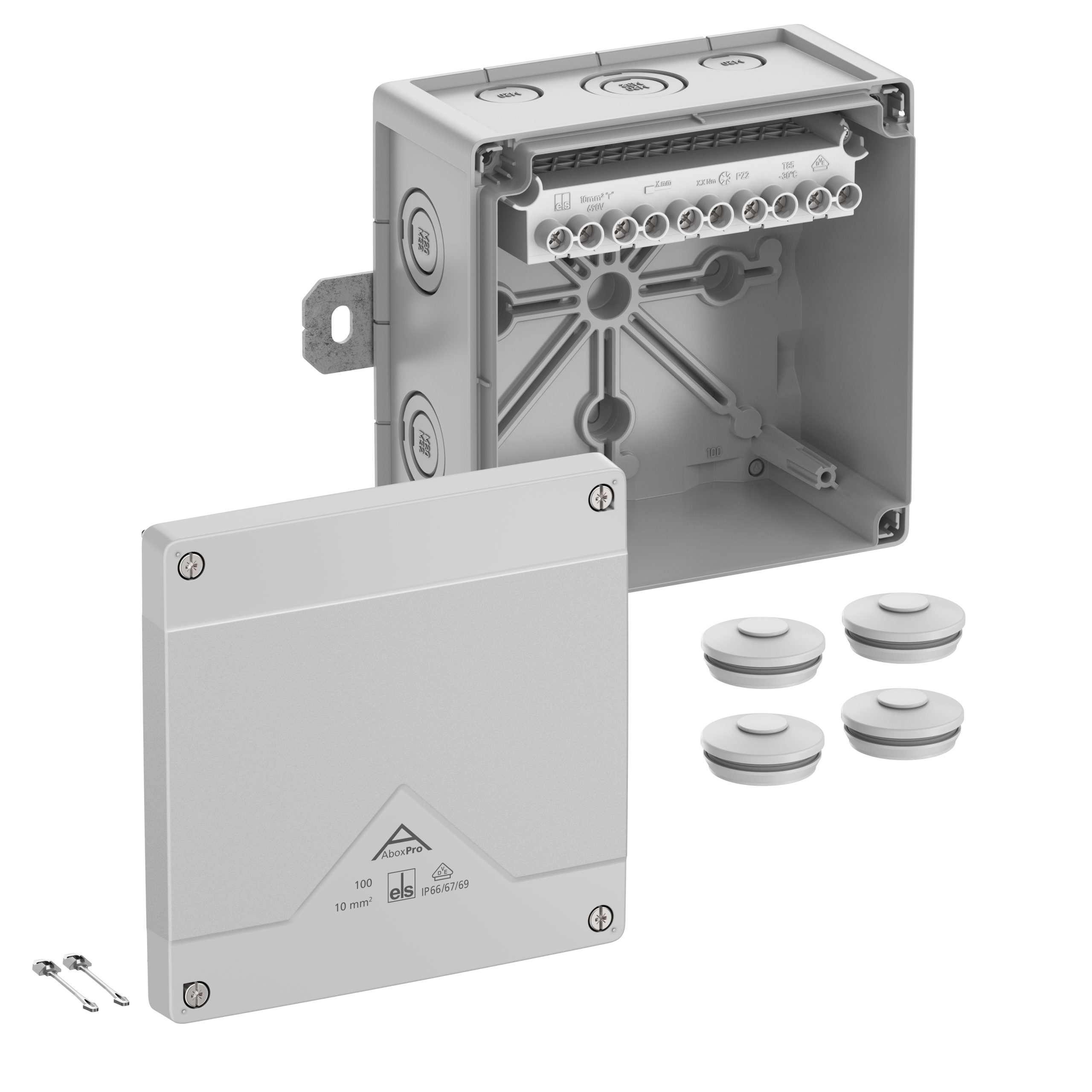

Junction box, protection class IP66/IP67/IP69, nominal cross-section 10mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M25/M32, (2 rear, 10 side), external fixing lugs, for installation in industrial environments and unprotected outdoor areas, grey, Ui=690 V AC, In=57 A, with raised screw terminal block, 5-pole- 10mm², clampable cross-sections per pole: 4 x 2.5mm², 4 x 4mm², 4 x 6mm², 4 x 10mm² rigid Cu/flexible with wire-end ferrule
Dimensions: 152 x 152 x 85mm
Accessories supplied: 4 double membrane seals IP66 M32 sealing range 13-21mm, cover retainer
International product number (GTIN): 4013902663606
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 41042101
Manufacturer type description: Abox Pro 100 AB-10²
Ключові слова: Außeninstallation, Exterior installation, IP69, IP69, Außenbereich, Outdoor applications, abx, abx, aox, aox
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
