40242101 Abox Pro 025 AB-2,5²
Код товара: 88854
Ціна за запитом
Junction box, Type of protection IP66/IP67/IP69, max. 2,5², IK09, Protection class II, Ui 450V AC, Ui 450V DC, DLG, DNV, VDE, Halogen free
| Виробник |
|---|

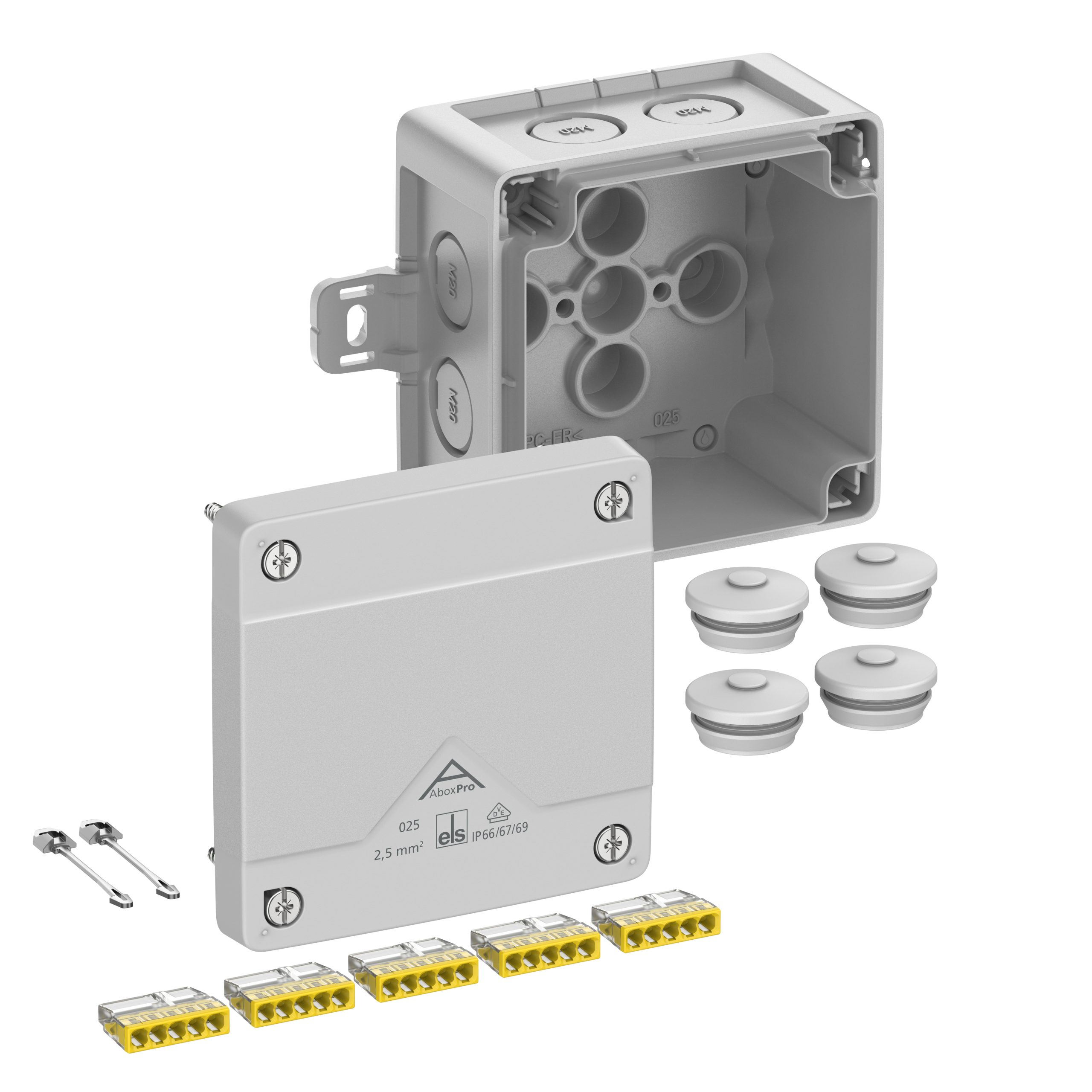

Junction box, protection class IP66/IP67/IP69, nominal cross-section 2.5mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M16/M20, (1 rear, 7 side), external fixing lugs, for installation in industrial environments and unprotected outdoor areas, grey, Ui=450 V AC, In=24 A, with 5 screwless 5-wire terminal, Wago 2273-205, max. nominal cross-section in accordance with DIN EN 60998: 2.5mm², clampable cross-sections per pole: 5 x 0.5-2.5mm² rigid Cu and Al (follow installation instructions)
Dimensions: 92 x 92 x 60mm
Accessories supplied: 4 double membrane seals IP66 M20 sealing range 7-13mm, cover retainer
International product number (GTIN): 4013902662371
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 40242101
Manufacturer type description: Abox Pro 025 AB-2,5²
Ключові слова: Außeninstallation, Exterior installation, IP69, IP69, Außenbereich, Outdoor applications, abx, abx, aox, aox
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
