04012301 GSi 123-NPE
Код товара: 85787
Ціна за запитом
Busbar enclosures, Type of protection IP65, Impact strength IK08, Protection class II, Rated voltage 690V AC, Halogen free
| Виробник |
|---|

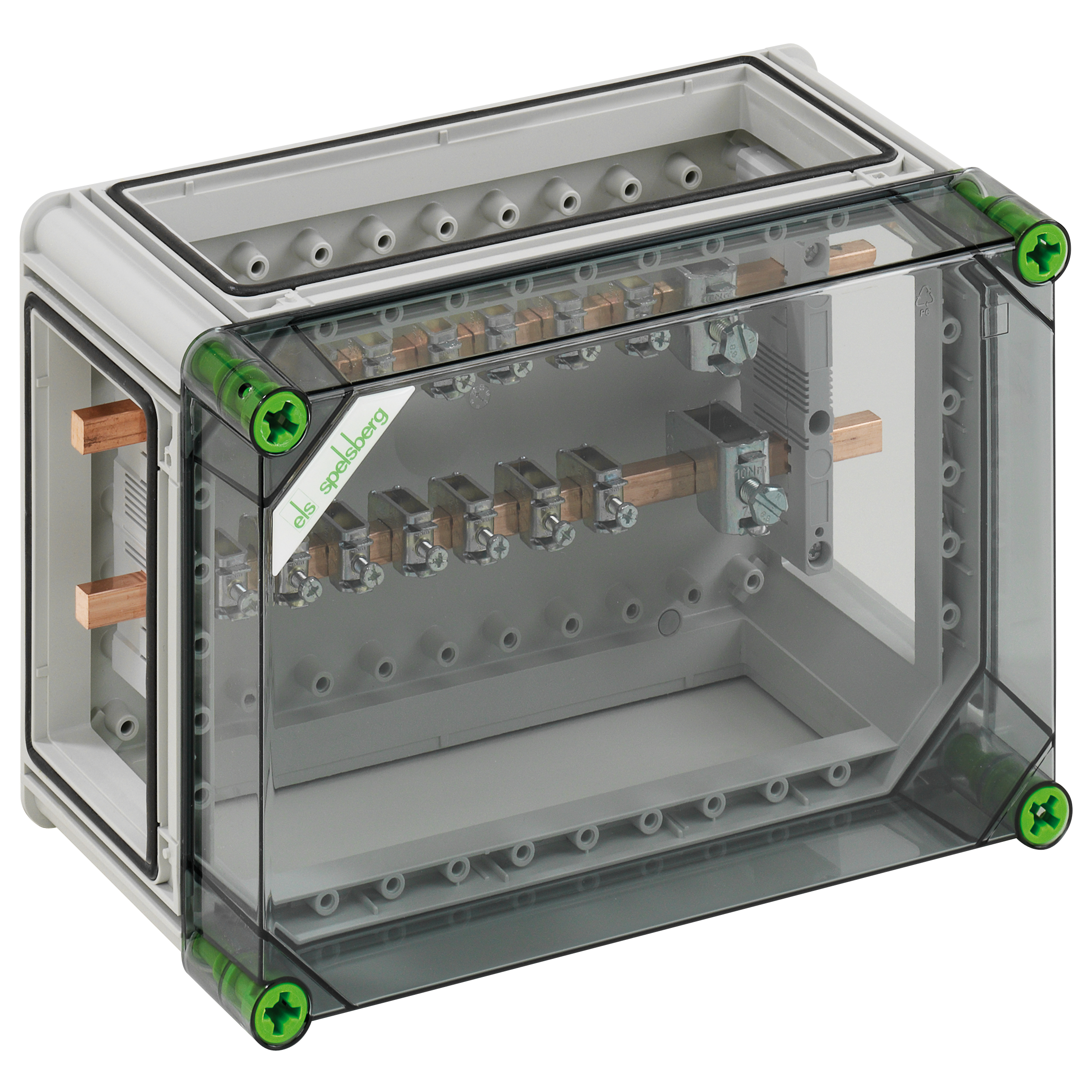

Busbar housing-Industrial Quality -, 2 poles, 250 A, N: 12 x 10mm, with copper rails, PE: 12 x 10mm, with 14 busbar terminals 1.5-16mm², with 2 busbar terminals 16-70mm², 3 x enclosure connectors (GGV), with transparent cover
Dimensions: 220 x 320 x 179mm
International product number (GTIN): 4013902832682
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 04012301
Manufacturer type description: GSi 123-NPE
Ключові слова: Sicherungsgehäuse, Fuse enclosure, Gehäuse, Enclosure, Kunststoffgehäuse, Plastic enclosure, enystar, enystar, mi, mi
Special product status:
Classification system: ETIM-9.0
Group reference: EC002274
Посилання
Страница продукта
Link to FAQ
Link to Application example
Link to Download
Link to Technical data sheet
Link to Sales brochure
Link to REACH information
Link to Product page
Dimensioned drawing
Link to Product note
Link to Siemens support portal
Circuit diagram
