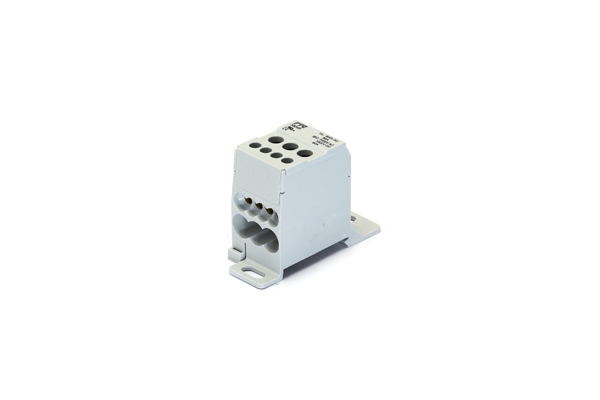

38049 Distribution block 1 pole grey 100A 7 connections
Код товара: 135407
430,30 грн з ПДВ
The one pole power distribution block is compatible for copper cables. IEC: 80 A | UL: 80 A | max. 100 A multi wire 3 x 2,5 – 25 sqmm | 3 x 14 – 4 AWG 4 x 2,5 – 6 sqmm | 4 x 14 – 10 AWG with sleeve 3 x 2,5 – 16 sqmm | 3 x 14 – 6 AWG 4 x 2,5 – 6 sqmm | 4 x 14 – 10 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
| Виробник |
|---|
The one pole power distribution block is compatible for copper cables. IEC: 80 A | UL: 80 A | max. 100 A multi wire 3 x 2,5 – 25 sqmm | 3 x 14 – 4 AWG 4 x 2,5 – 6 sqmm | 4 x 14 – 10 AWG with sleeve 3 x 2,5 – 16 sqmm | 3 x 14 – 6 AWG 4 x 2,5 – 6 sqmm | 4 x 14 – 10 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
International product number (GTIN): 4018841335010
Universal product code (UPC):
Alternative product number: K00 AUX38049
Product ID of the manufacturer: 38049
Manufacturer type description: K00 AUX38049
Ключові слова: one pole power distribution block one pole distribution block one pole distribution terminal terminal one phase one pole terminal distribution block comapct power distribution block terminal block
Special product status:
Classification system: ETIM-7.0
Group reference: EC001894
