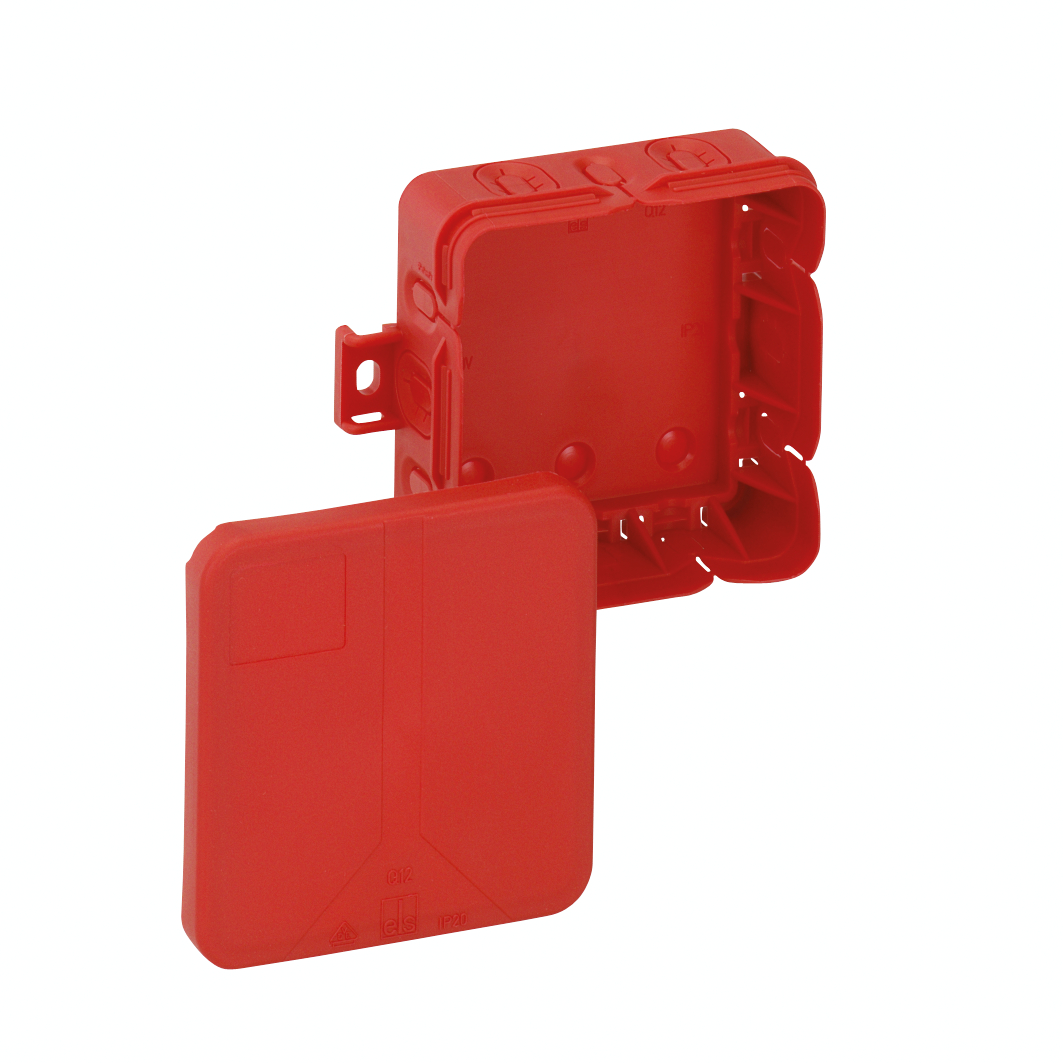

33471201 Q 12 SB-L
Код товара: 88710
Ціна за запитом
Junction box, Type of protection IP20, Max. conductor cross section 2,5², Impact strength IK07, Protection class II, Ui 400V AC, VDE, Halogen free
| Виробник |
|---|
Junction box, protection class IP20, nominal cross-section 2.5mm², Ui=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), inserts with cable retention capacity, (3 rear, 12 side), internal fixing points, for standard indoor installations, with cable retention, cable entry from above possible, red, without terminals, for identifying circuits for safety lighting
Dimensions: 85 x 85 x 37mm
International product number (GTIN): 4013902399413
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 33471201
Manufacturer type description: Q 12 SB-L
Ключові слова: Klemmenkasten, Terminal box, Verbindungsdose, Junction box, Kabelabzweigkasten, Cable junction box, Rote Reihe, Red Range, Kabelabzweigdose, junction box
Special product status:
Classification system: ETIM-9.0
Group reference: EC002600
