03210801 GTE 108
Код товара: 85730
Ціна за запитом
Empty enclosure for switchgear, Type of protection IP65, Impact strength IK08, Protection class II, Un 690V AC, Rated voltage 400V DC, Halogen free
| Виробник |
|---|

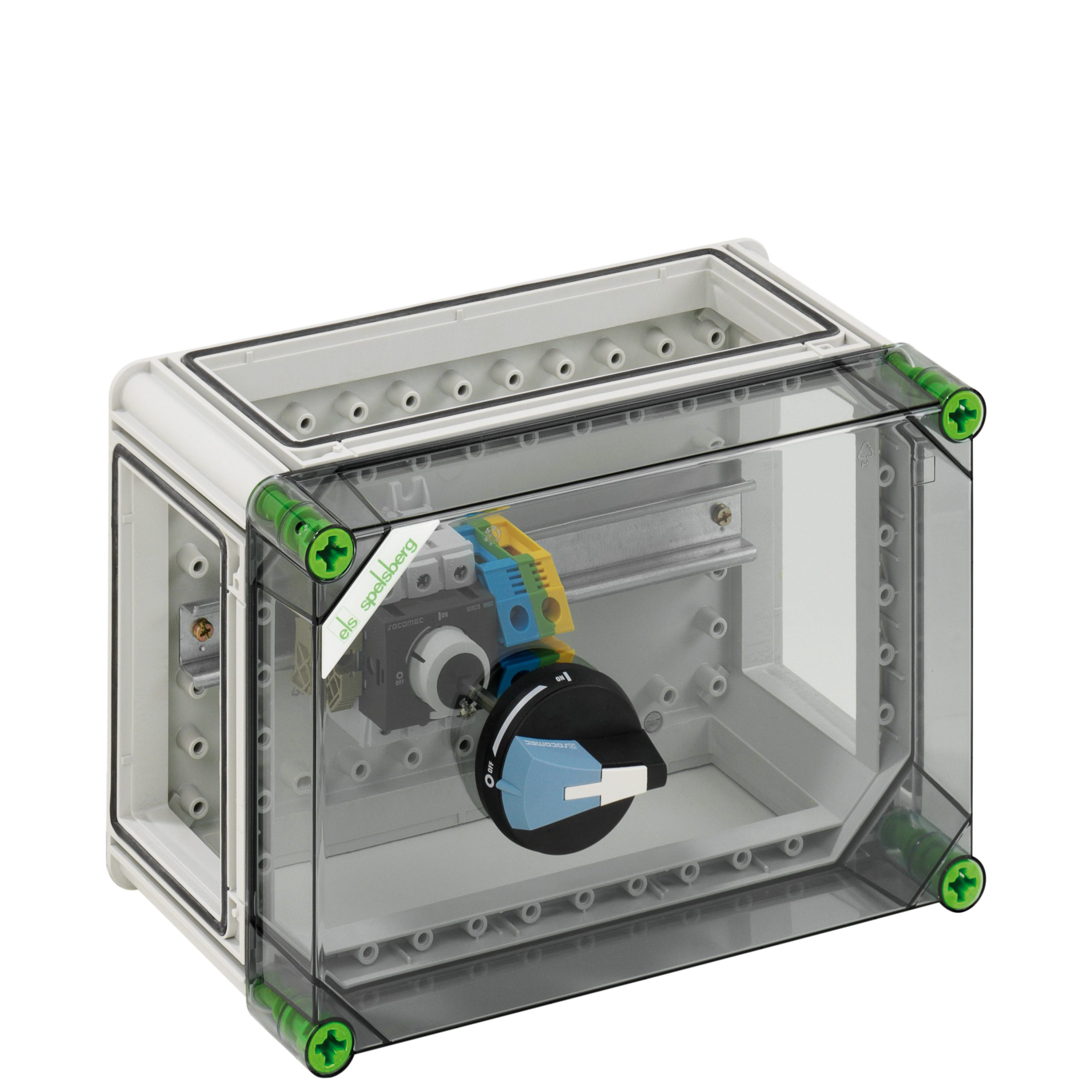

Switch disconnector enclosure-Industrial Quality-with external actuation, lockable, 1 x load disconnector switch 80A, 3-pole switching, Cage-type terminal 2.5-35mm², for CU conductors, PE/N terminal 35mm², 3 x enclosure connectors (GGV), with transparent cover
Dimensions: 320 x 220 x 179mm
International product number (GTIN): 4013902051588
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 03210801
Manufacturer type description: GTE 108
Ключові слова: Trennschaltergehäuse, Empty enclosure for switchgear, Schaltanlagen, switchboards, ISO-Verteiler, iso distributor, ISO-Schaltanlagen, iso switchboards, Isolierstoffverteiler, insulation distributor
Special product status:
Classification system: ETIM-9.0
Group reference: EC000249
