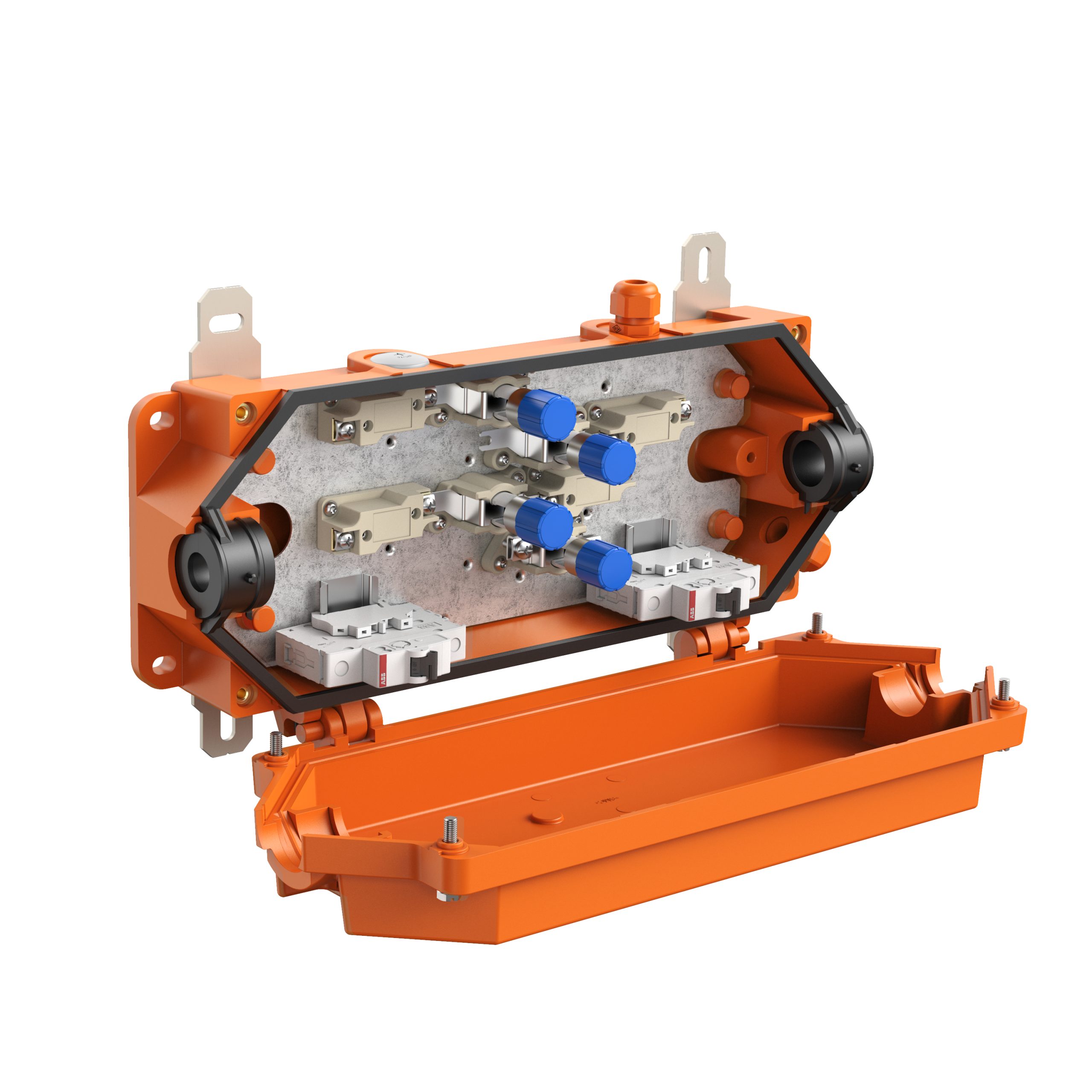

30244250 WKE Rapid-Box HT 2×3 50² 2F

Junction box, protection class IP66/IP67, Ui=400 V AC, M25, (5 side), external fixing lugs, with E30-E 90 electrical functional integrity according to DIN 4102 Part 12. For installations in the industrial environment and tunnel applications, pressure and suction tight in accordance with Gotthard guideline. Halogen-free enclosure made of special thermosetting plastic, terminals made of special high-temperature-resistant ceramic. External fixing lugs and cover screws made of stainless steel 1.4571, orange, Feed-through: 4-pole terminal for uncut wire, clamping range for uncut wire 16mm² to 50mm², clamping range for cut wire 16mm² to 35mm², rated current 100A. Fuse and feedback-free junction 4-pole up to 2.5mm², fuse protection with 2 x circuit breaker, unipolar B10, pre-wired, sealing range main cable: 21-26mm (other sealing ranges on request)
Dimensions: 190 x 447 x 105mm
Accessories supplied: 2 off M25 cable gland, sealing range 9-16mm
4 off M25 locking screws
