02135201 GSi 2 VS-KT-t
Код товара: 85688
Ціна за запитом
Distribution board, Type of protection IP65, 14 TE, Impact strength IK08, Protection class II, Rated insulation voltage 400V AC, Halogen free
| Виробник |
|---|

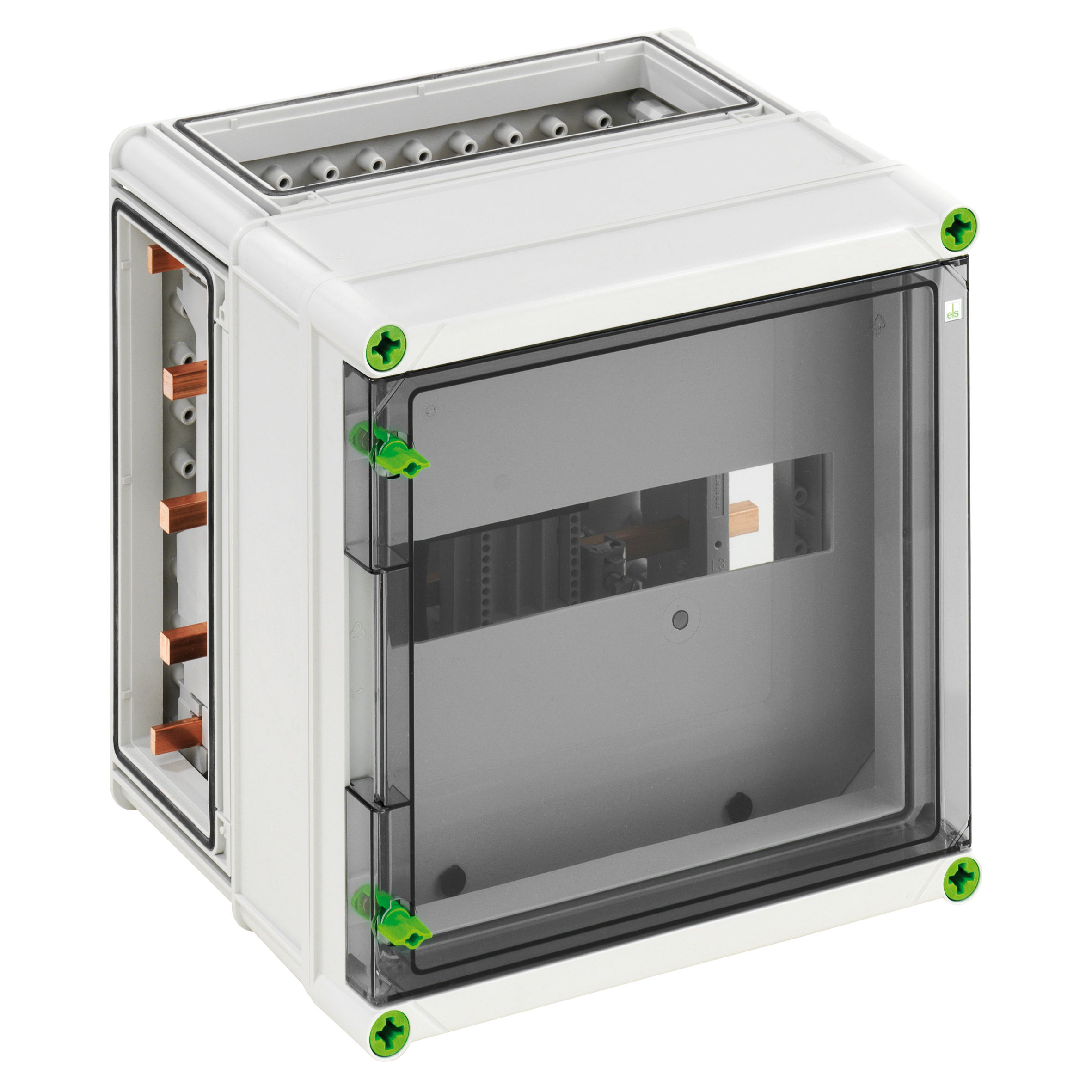

Module enclosure-Industrial Quality -, 14 distribution units, 1-row, standard version sealable, with busbar system, 5-pole 250A, Busbar power supply 70/35mm² and adapter for installing a selective main switch, masking and labelling strips, 3 x enclosure connectors (GGV), with transparent hinged door
Dimensions: 320 x 320 x 254mm
International product number (GTIN): 4013902902866
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 02135201
Manufacturer type description: GSi 2 VS-KT-t
Ключові слова: Installationskleinverteiler, Distribution board, Schaltanlagen, switchboards, ISO-Verteiler, iso distributor, ISO-Schaltanlagen, iso switchboards, Isolierstoffverteiler, insulation distributor
Special product status:
Classification system: ETIM-9.0
Group reference: EC000214
Посилання
Страница продукта
Link to FAQ
Link to Application example
Link to Download
Link to Technical data sheet
Link to Sales brochure
Link to REACH information
Link to Product page
Dimensioned drawing
Link to Product note
Link to Siemens support portal
Circuit diagram
