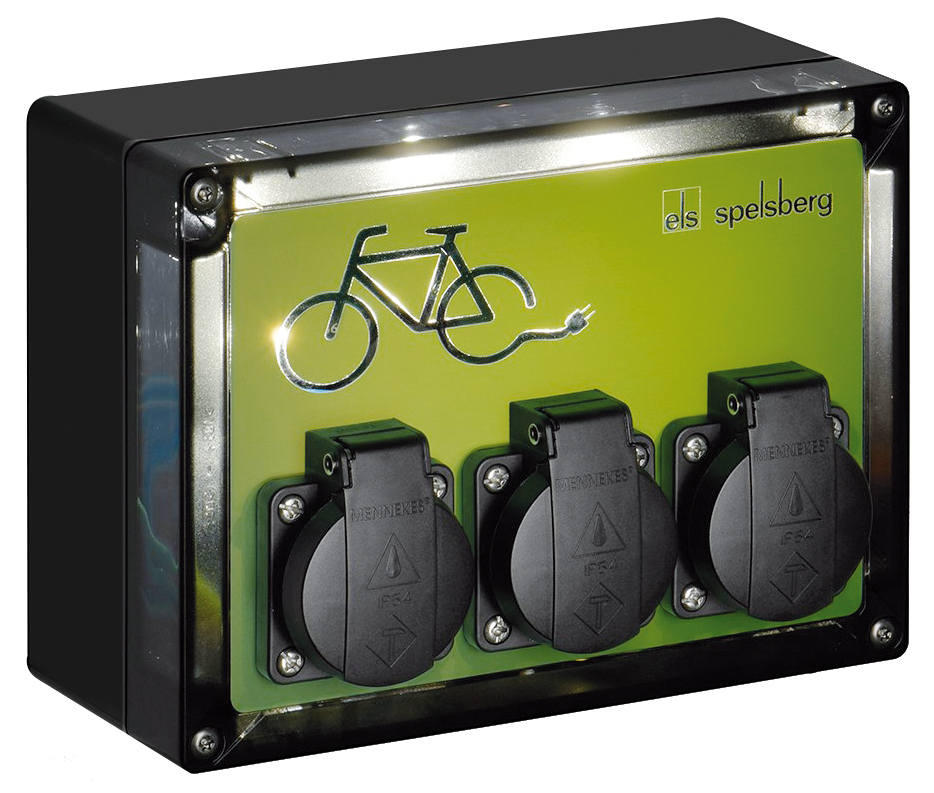

20003401 TG BCS 3 LED
Код товара: 88144
Ціна за запитом
E-Bike charging station, black, Type of protection IP44, Impact strength IK08, Protection class II, Rated insulation voltage 400V AC, Halogen free
| Виробник |
|---|
E-Bike charging station, protection class IP44, black, incl. cover screw with special head, cable entries, 1 x M25 rear housing side, 1 x M25 lower housing side, 1 x ventilation seal M20, pre-wired to terminal Wago 221 (L1/L2/L3/N/PE)
Cable insertions:
Bottom: DMS 1 x M25
Rear: DMS 1 x M25,
with LED lighting
equipped with:
- 3 x SCHUKO(R) plug socket (on front), 230V
Dimensions: 202 x 152 x 110mm
International product number (GTIN): 4013902611737
Universal product code (UPC):
Alternative product number:
Product ID of the manufacturer: 20003401
Manufacturer type description: TG BCS 3 LED
Ключові слова: Fahrradladestation, Bicycle charging station, Ladegehäuse, Charge housing, Ladesäule, Charge column, bicycle charging station, bicycle charging station, Fahrrad-Ladestation, Bicycle charging station
Special product status:
Classification system: ETIM-9.0
Group reference: EC002883
