ST 42015-63 Auxibus 4 pole with cover and crimp connectors
ST 60FE0120S Auxigaine cable with 1 x sleeve 6sqmm black
ST 60FE0200B Auxigaine cable with 1 x sleeve 6sqmm blue
ST 60FE0200S Auxigaine cable with 1 x sleeve 6sqmm black
STI025B Stud terminal 25sqmm blue / M6 / 101A / 6Nm
To connect large currents, the isolated stud terminals offer space for high conductor cross sections. The terminals are used in applications of cabinet building and in combination with driving motors for high currents and with a maximum operating voltage of 1,000 V. Easy mounting on DIN rails facilitate installation. Depending on the conductor cross-section, it is possible to attach up to four conductors with a cable lug to the threaded bolt using a hexagon screw. The screw connection creates an optimum connection between the clamping body and the cable lug and ensures a secure application, even in a vibrating environment. The stud terminals can be stringed together by copper bridges with two holes. To do this, break out the housing at the pre-marked points. The terminals are manufactured according to the DIN EN 60947-7-1 standard. The material of the U-profile is PA6.
The hexagonal screw is M6 with a thightening torque of 6Nm. , eng

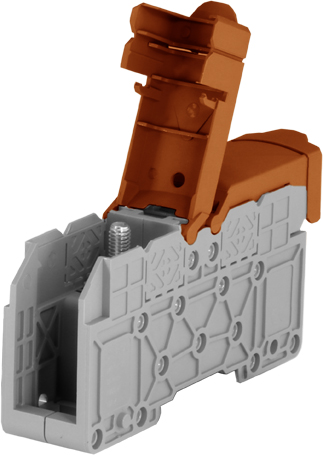

STI025BN Stud terminal 25sqmm braun / M6 / 101A / 6Nm
To connect large currents, the isolated stud terminals offer space for high conductor cross sections. The terminals are used in applications of cabinet building and in combination with driving motors for high currents and with a maximum operating voltage of 1,000 V. Easy mounting on DIN rails facilitate installation. Depending on the conductor cross-section, it is possible to attach up to four conductors with a cable lug to the threaded bolt using a hexagon screw. The screw connection creates an optimum connection between the clamping body and the cable lug and ensures a secure application, even in a vibrating environment. The stud terminals can be stringed together by copper bridges with two holes. To do this, break out the housing at the pre-marked points. The terminals are manufactured according to the DIN EN 60947-7-1 standard. The material of the U-profile is PA6.
The hexagonal screw is M6 with a thightening torque of 6Nm. , eng

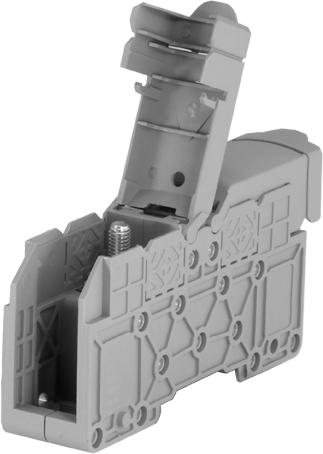

STI025G Stud terminal 25sqmm grey / M6 / 101A / 6Nm
To connect large currents, the isolated stud terminals offer space for high conductor cross sections. The terminals are used in applications of cabinet building and in combination with driving motors for high currents and with a maximum operating voltage of 1,000 V. Easy mounting on DIN rails facilitate installation. Depending on the conductor cross-section, it is possible to attach up to four conductors with a cable lug to the threaded bolt using a hexagon screw. The screw connection creates an optimum connection between the clamping body and the cable lug and ensures a secure application, even in a vibrating environment. The stud terminals can be stringed together by copper bridges with two holes. To do this, break out the housing at the pre-marked points. The terminals are manufactured according to the DIN EN 60947-7-1 standard. The material of the U-profile is PA6.
The hexagonal screw is M6 with a thightening torque of 6Nm. , eng

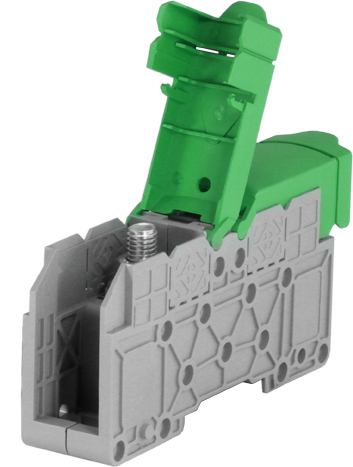

STI025PE Stud terminal 25sqmm green / M6 / 101A / 6Nm
To connect large currents, the isolated stud terminals offer space for high conductor cross sections. The terminals are used in applications of cabinet building and in combination with driving motors for high currents and with a maximum operating voltage of 1,000 V. Easy mounting on DIN rails facilitate installation. Depending on the conductor cross-section, it is possible to attach up to four conductors with a cable lug to the threaded bolt using a hexagon screw. The screw connection creates an optimum connection between the clamping body and the cable lug and ensures a secure application, even in a vibrating environment. The stud terminals can be stringed together by copper bridges with two holes. To do this, break out the housing at the pre-marked points. The terminals are manufactured according to the DIN EN 60947-7-1 standard. The material of the U-profile is PA6.
The hexagonal screw is M6 with a thightening torque of 6Nm. , eng
STI025R Stud terminal 25sqmm red / M6 / 101A / 6Nm
To connect large currents, the isolated stud terminals offer space for high conductor cross sections. The terminals are used in applications of cabinet building and in combination with driving motors for high currents and with a maximum operating voltage of 1,000 V. Easy mounting on DIN rails facilitate installation. Depending on the conductor cross-section, it is possible to attach up to four conductors with a cable lug to the threaded bolt using a hexagon screw. The screw connection creates an optimum connection between the clamping body and the cable lug and ensures a secure application, even in a vibrating environment. The stud terminals can be stringed together by copper bridges with two holes. To do this, break out the housing at the pre-marked points. The terminals are manufactured according to the DIN EN 60947-7-1 standard. The material of the U-profile is PA6.
The hexagonal screw is M6 with a thightening torque of 6Nm. , eng

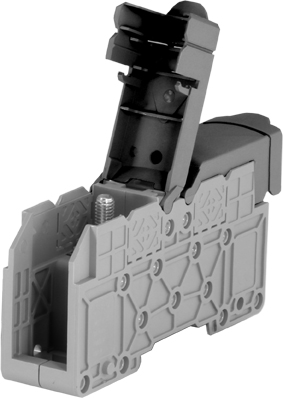

STI025S Stud terminal 25sqmm black / M6 / 101A / 6Nm
To connect large currents, the isolated stud terminals offer space for high conductor cross sections. The terminals are used in applications of cabinet building and in combination with driving motors for high currents and with a maximum operating voltage of 1,000 V. Easy mounting on DIN rails facilitate installation. Depending on the conductor cross-section, it is possible to attach up to four conductors with a cable lug to the threaded bolt using a hexagon screw. The screw connection creates an optimum connection between the clamping body and the cable lug and ensures a secure application, even in a vibrating environment. The stud terminals can be stringed together by copper bridges with two holes. To do this, break out the housing at the pre-marked points. The terminals are manufactured according to the DIN EN 60947-7-1 standard. The material of the U-profile is PA6.
The hexagonal screw is M6 with a thightening torque of 6Nm. , eng

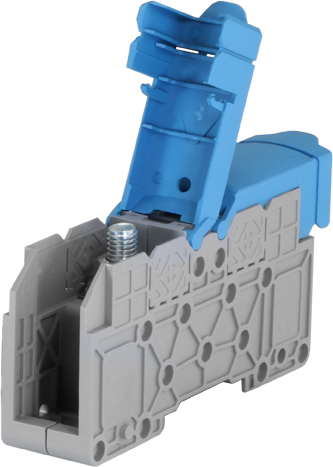

STI035B Stud terminal 35sqmm blue / M8 / 125A / 10Nm
To connect large currents, the isolated stud terminals offer space for high conductor cross sections. The terminals are used in applications of cabinet building and in combination with driving motors for high currents and with a maximum operating voltage of 1,000 V. Easy mounting on DIN rails facilitate installation. Depending on the conductor cross-section, it is possible to attach up to four conductors with a cable lug to the threaded bolt using a hexagon screw. The screw connection creates an optimum connection between the clamping body and the cable lug and ensures a secure application, even in a vibrating environment. The stud terminals can be stringed together by copper bridges with two holes. To do this, break out the housing at the pre-marked points. The terminals are manufactured according to the DIN EN 60947-7-1 standard. The material of the U-profile is PA6.
The hexagonal screw is M8 with a thightening torque of 10Nm. , eng
STI035BN Stud terminal 35sqmm braun / M8 / 125A / 10Nm
To connect large currents, the isolated stud terminals offer space for high conductor cross sections. The terminals are used in applications of cabinet building and in combination with driving motors for high currents and with a maximum operating voltage of 1,000 V. Easy mounting on DIN rails facilitate installation. Depending on the conductor cross-section, it is possible to attach up to four conductors with a cable lug to the threaded bolt using a hexagon screw. The screw connection creates an optimum connection between the clamping body and the cable lug and ensures a secure application, even in a vibrating environment. The stud terminals can be stringed together by copper bridges with two holes. To do this, break out the housing at the pre-marked points. The terminals are manufactured according to the DIN EN 60947-7-1 standard. The material of the U-profile is PA6.
The hexagonal screw is M8 with a thightening torque of 10Nm. , eng
