Розподільчі блоки
38403PE Distribution block 1 pole green 500A 7 connections
38403R Distribution block 1 pole red 500A 7 connections
38404 Distribution block 1 pole grey 500 A 3 connections
38404N Distribution block 1 pole blue 500 A 3 connections
38404PE Distribution block 1 pole green 500A 3 connections
38404R Distribution block 1 pole red 500 A 3 connections

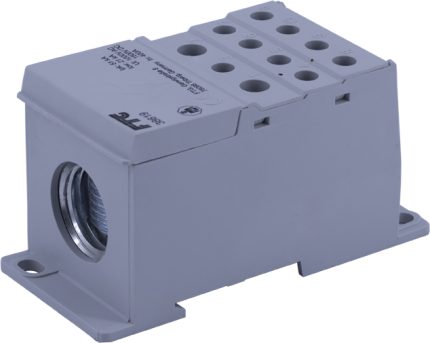

38619 Distribution block 1 pole grey up to 185sqmm up to 400A (Cu) 12 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 400 A Cu | 300 A Al multi wire 1 x 95 - 185 sqmm 2 x 2,5 - 35 sqmm 5 x 2,5 - 16 sqmm | 5 x 14 - 6 AWG 4 x 2,5 - 10 sqmm | 4 x 14 - 8 AWG with sleeve 95 - 150 sqmm 2 x 2,5 - 25 sqmm 5 x 2,5 - 16 sqmm 4 x 2,5 - 10 sqmm max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC , eng
38619N Distribution block 1 pole blue up to 185sqmm up to 400A (Cu) 12 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 400 A Cu | 300 A Al multi wire 1 x 95 - 185 sqmm 2 x 2,5 - 35 sqmm 5 x 2,5 - 16 sqmm | 5 x 14 - 6 AWG 4 x 2,5 - 10 sqmm | 4 x 14 - 8 AWG with sleeve 95 - 150 sqmm 2 x 2,5 - 25 sqmm 5 x 2,5 - 16 sqmm 4 x 2,5 - 10 sqmm max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC , eng
38619PE Distribution block 1 pole green up to 185sqmm up to 400A (Cu) 12 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 400 A Cu | 300 A Al multi wire 1 x 95 - 185 sqmm 2 x 2,5 - 35 sqmm 5 x 2,5 - 16 sqmm | 5 x 14 - 6 AWG 4 x 2,5 - 10 sqmm | 4 x 14 - 8 AWG with sleeve 95 - 150 sqmm 2 x 2,5 - 25 sqmm 5 x 2,5 - 16 sqmm 4 x 2,5 - 10 sqmm max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC , eng

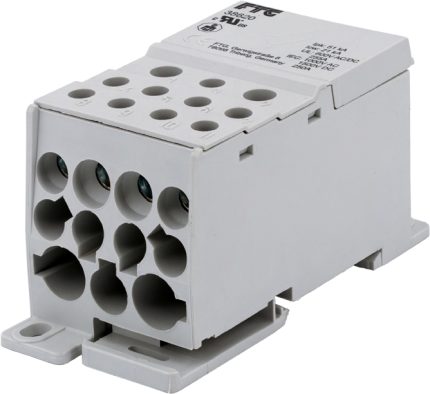

38620 Distribution block 1 pole grey up to 120sqmm up to 250A (Cu) 12 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 250 A Cu | 200 A Al UL: 255 A Cu multi wire 1 x 35 - 120 sqmm | 1 x 2 - 250 kcmil 2 x 2,5 - 35 sqmm | 2 x 14/2 AWG 5 x 2,5 - 16 sqmm | 5 x 14 - 6 AWG 4 x 2,5 - 10 sqmm | 4 x 14 - 8 AWG with sleeve 1 x 35 - 95 sqmm | 1 x 2 - 4/0 AWG 2 x 2,5 - 25 sqmm | 2 x 14 - 4 AWG 5 x 2,5 - 16 sqmm | 5 x 14 - 6 AWG 4 x 2,5 - 10 sqmm | 4 x 14 - 8 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
38620N Distribution block 1 pole blue up to 120sqmm up to 250A (Cu) 12 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 250 A Cu | 200 A Al UL: 255 A Cu multi wire 1 x 35 - 120 sqmm | 1 x 2 - 250 kcmil 2 x 2,5 - 35 sqmm | 2 x 14/2 AWG 5 x 2,5 - 16 sqmm | 5 x 14 - 6 AWG 4 x 2,5 - 10 sqmm | 4 x 14 - 8 AWG with sleeve 1 x 35 - 95 sqmm | 1 x 2 - 4/0 AWG 2 x 2,5 - 25 sqmm | 2 x 14 - 4 AWG 5 x 2,5 - 16 sqmm | 5 x 14 - 6 AWG 4 x 2,5 - 10 sqmm | 4 x 14 - 8 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
38620PE Distribution block 1 pole green up to 120sqmm up to 250A (Cu) 12 connections
The one pole power distribution block is compatible for copper and aluminium cable. IEC: 250 A Cu | 200 A Al UL: 255 A Cu multi wire 1 x 35 - 120 sqmm | 1 x 2 - 250 kcmil 2 x 2,5 - 35 sqmm | 2 x 14/2 AWG 5 x 2,5 - 16 sqmm | 5 x 14 - 6 AWG 4 x 2,5 - 10 sqmm | 4 x 14 - 8 AWG with sleeve 1 x 35 - 95 sqmm | 1 x 2 - 4/0 AWG 2 x 2,5 - 25 sqmm | 2 x 14 - 4 AWG 5 x 2,5 - 16 sqmm | 5 x 14 - 6 AWG 4 x 2,5 - 10 sqmm | 4 x 14 - 8 AWG max. operating current: IEC 60947-7-1: 1000 V AC / 1500 V DC | UL1059: 600 V AC/DC UL recognized, eng
