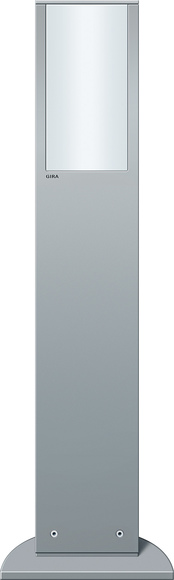

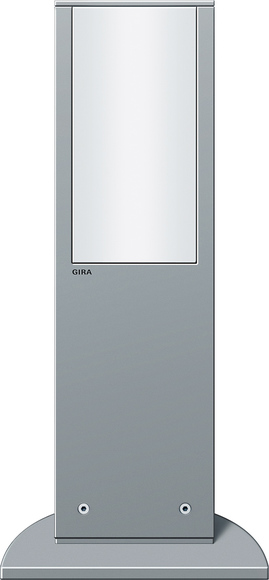

Стійка світлова 491 мм, алюміній
Light profile height 491 mm colour aluminium - The light element consists of an aluminium reflector and an impact-resistant acrylic glass plate. - Light is also emitted from the rear as orientation light. - A 5-pole screw terminal for rigid and flexible conductors up to 4 mm² is used for connection. Single wall plug mounting. Suitable for E27 light sources with energy efficiency classes A++ to E. The mounting materials are included in the scope of supply. Light sources are{b}not{b}included in the scope of supply.

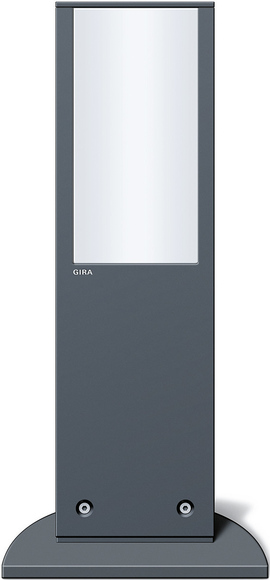

Стійка світлова 491 мм, антрацит
Light profile height 491 mm anthracite - The light element consists of an aluminium reflector and an impact-resistant acrylic glass plate. - Light is also emitted from the rear as orientation light. - A 5-pole screw terminal for rigid and flexible conductors up to 4 mm² is used for connection. Single wall plug mounting. Suitable for E27 light sources with energy efficiency classes A++ to E. The mounting materials are included in the scope of supply. Light sources are{b}not{b}included in the scope of supply.
Стійка світлова 769 мм, алюміній
Light profile height 769 mm colour aluminium - The light element consists of an aluminium reflector and an impact-resistant acrylic glass plate. - Light is also emitted from the rear as orientation light. - A 5-pole screw terminal for rigid and flexible conductors up to 4 mm² is used for connection. Single wall plug mounting. Suitable for E27 light sources with energy efficiency classes A++ to E. The mounting materials are included in the scope of supply. Light sources are{b}not{b}included in the scope of supply.

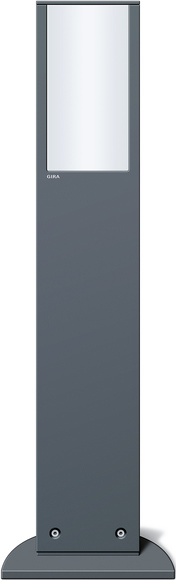

Стійка світлова 769 мм, антрацит
Light profile height 769 mm anthracite - The light element consists of an aluminium reflector and an impact-resistant acrylic glass plate. - Light is also emitted from the rear as orientation light. - A 5-pole screw terminal for rigid and flexible conductors up to 4 mm² is used for connection. Single wall plug mounting. Suitable for E27 light sources with energy efficiency classes A++ to E. The mounting materials are included in the scope of supply. Light sources are{b}not{b}included in the scope of supply.
Твердотільне реле 25 амперів. 22-48 VDC/24-265 VAC
Термостат 24В з вимикачем і контр. лампою, вставка
Room temperature controller insert 24 V~ with NC or NO contact, 1-way switch and control light - Control of electrothermal servos for 24 V~. - Control of room temperature in closed rooms. - Manual switch-off of temperature control. - Input terminal for activating the cooling temperature (ECO) with the master clock. - Input terminal for activating cooling mode with central control. - Internal temperature sensor. - Frost protection function. - Silent switching. - Temperature drop detection (calls up the frost protection temperature when the window is opened). - Output signal: Pulse width modulation (PWM) or two-point control (On/Off). - Adaptation to valves (normally open or normally closed). - Offset setting (correction value for the measured temperature). - Setting range of the room temperature can be limited with setting rings. - Valve protection function (opening and closing of the valve once a week).
Термостат Siemens RAM-TR.2000M
Термостат з вимикачем і контр. лампою, вставка
Room temperature controller insert 230 V~ with NC or NO contact, 1-way switch and control light - Control of electrothermal servos for 230 V~. - Control of room temperature in closed rooms. - Manual switch-off of temperature control. - Input terminal for activating the cooling temperature (ECO) with the master clock. - Input terminal for activating cooling mode with central control. - Internal temperature sensor. - Frost protection function. - Silent switching. - Temperature drop detection (calls up the frost protection temperature when the window is opened). - Output signal: Pulse width modulation (PWM) or two-point control (On/Off). - Adaptation to valves (normally open or normally closed). - Offset setting (correction value for the measured temperature). - Setting range of the room temperature can be limited with setting rings. - Valve protection function (opening and closing of the valve once a week).
Термостат з замикаючим контактом, контр. лампою і ДТП, вставка
Room temperature controller insert, 230 V~/10 A with NO contact, control light and sensor for electric floor heating - Electronic temperature controller for controlling electric floor heatings or floor temperature control systems. - Control of the floor temperature in closed rooms. - Switching off the floor temperature control manually. - Input terminal for activating the cooling temperature (ECO) with the master clock. - External temperature sensor (remote sensor). - Frost protection function. - Output signal: Pulse width modulation (PWM) or two-point control (On/Off). - Heating interruption for 5 minutes after one hour of continuous heating. - Setting range of the room temperature can be limited with setting rings. Install remote sensor in empty pipe in the floor. The supply cable to the remote sensor can be extended to 50 m with a two-wire cable (2 x 1.5 mm²). A remote sensor in the plastic cap is included in the scope of delivery.
Термостат з розмикаючим контактом, вставка
Room temperature controller insert 230 V~ with NC contact - Control of electrothermal servos for 230 V~. - Control of room temperature in closed rooms. - Internal temperature sensor. - Silent switching. - Output signal: Pulse width modulation (PWM). - For “normally closed” valve type. - Setting range of the room temperature can be limited with setting rings. - Valve protection function (opening and closing of the valve once a week).
