Домофони

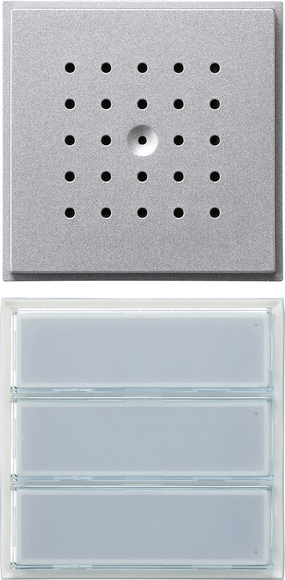

Пристрій переговорний 3-кл TX_44, алюміній

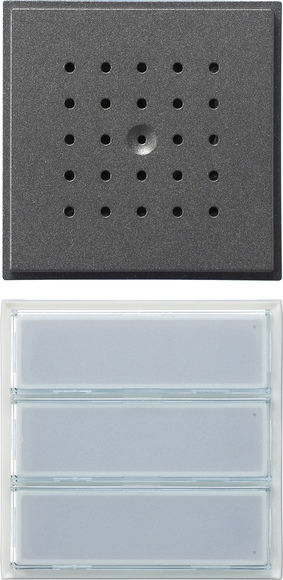

Пристрій переговорний 3-кл TX_44, антрацит

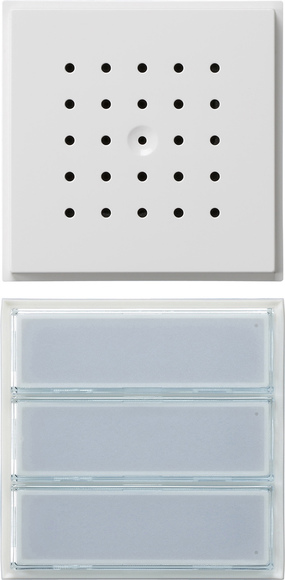

Пристрій переговорний 3-кл TX_44, білий
Реле прихованого монтажу
Flush-mounted DCS switching actuator - Flush-mounted switching actuator for controlling an external gong or other device using the Gira door communication bus. - Actuation of a zero-voltage switching contact (24 V SELV/ 50 µA to 1.6 A AC/DC) via the 2-wire bus. - The flush-mounted switching actuator can be actuated by:the "Door" and "Light" buttons on the home station,the floor-call button on the home station,the call button on the door station, the call button on the home station,a zero-voltage button (in combination with the DCS button interface, 2-gang). - The flush-mounted switching actuator can be used in four different operating modes: switching, timer/sec., timer/min., and pulse. - Impulse function for controlling existing automatic staircase mechanisms. - Switching time can be adjusted progressively from 1 to 10 s or 1 to 10 min., depending on the function set. - LED display for programming, function selection, and time setting. The flush-mounted switching actuator is intended for installation in a deep device box (60 mm deep) behind a DSC bus coupler.

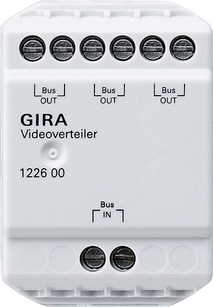

Розподільник відеосигналу
Video distributor - The video distributor is an active component for line adjustment of the video signal.
- The video distributor distributes the video signal of the door stations, DCS-camera gateways and DCS-IP gateways to the home stations.
- The video distributor is required when the cable routing to the video components of the Gira door communication system is implemented as a branch line.
- The video distributor ensures the proper terminating resistance to prevent possible reflections of the individual branches and the resulting picture disturbances.
The combination housing makes three mounting types possible:
- Surface-mounted (in a standard junction box).
- Flush-mounted (in a device box).
- As a DRA device (using the DRA adapter enclosed). The video distributor is cascadable. A total of up to 15 video distributors and video multiplexers can be used in one system.
No further configuration is necessary during commissioning because the video distributor automatically adapts to the existing mains supply. A DRA adapter is included.

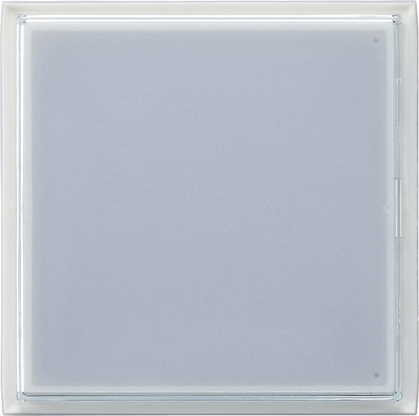

Секція 1-кл для виклику TX_44
Call button, 1 gang for door station - The door station can be expanded with an additional call button (up to 14 call button inserts, 1- or 3-gang can be connected to one door station). - Call-button illumination with LED technology, light colour white. Even, clearly visible call button illumination is achieved via maintenance-free, energy-saving LED technology. - Sprayed-water proof call-button cover plate made of shock-resistant plastic. - Name plate can be replaced without tools and without removing the frame. - Professional inscription by the Gira inscription service{b}www.beschriftung.gira.de{b}or the Gira inscription software.
